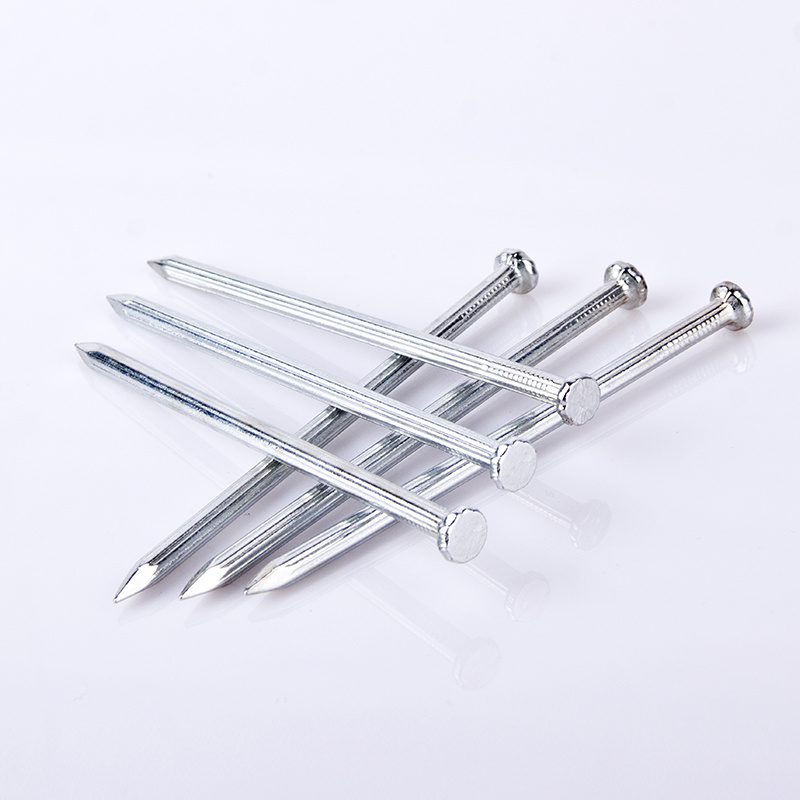

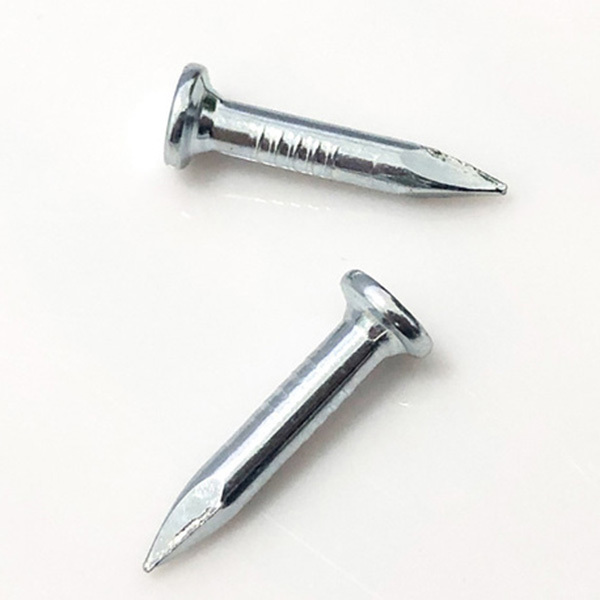

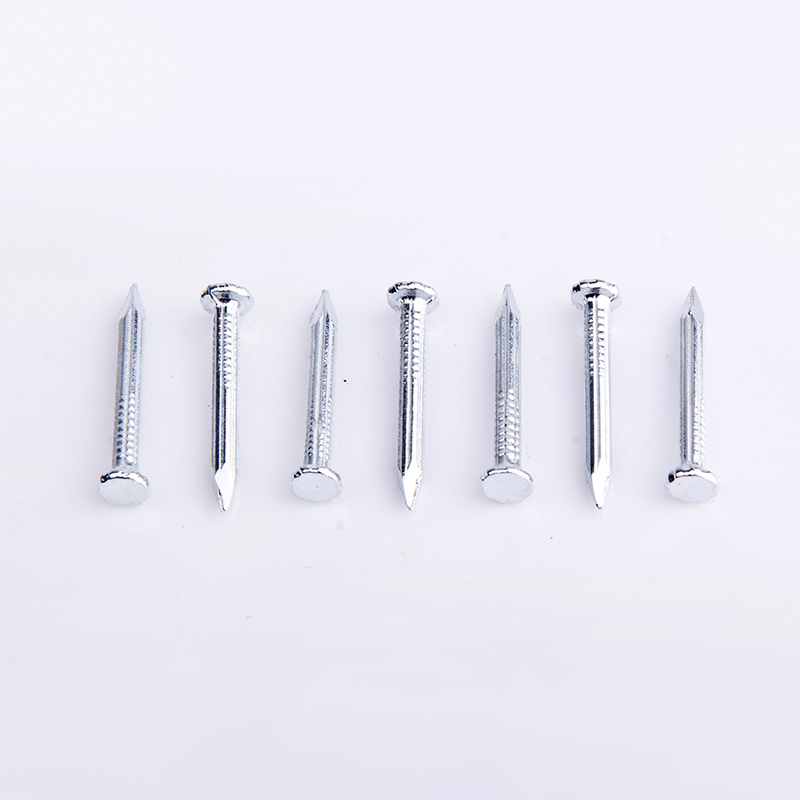

Steel Concrete Nails

Hardened construction nails engineered for concrete, masonry, brick and other demanding fixing applications.

Item: Concrete Nail / Steel Nail
Material: 45# / 55# Carbon Steel
Diameter: 1.5-5.5 mm / BWG 6-16
Length: 5/8-6 in / 12.7-152.4 mm
Head: Flat round, T, P, K, V, D, O, U or headless
Shank: Smooth, fluted, twisted or grooved
Finish: White, yellow or blue zinc; black phosphate; polished; Ruspert; stainless steel

Category: Steel Nails

Product description

High hardness for demanding construction work.

Far Glory concrete nails are produced from selected carbon steel and heat-treated for strength. Available shank, head, length and surface options let distributors match local construction habits and packing requirements.

Hardened steel45# and 55# carbon steel options for demanding substrates.
Multiple shanksSmooth, straight-line fluted, twisted and grooved profiles.
Wide size rangeCommon lengths from 5/8 inch through 6 inches.
OEM packingBulk bags, cartons, color boxes and small retail bags.

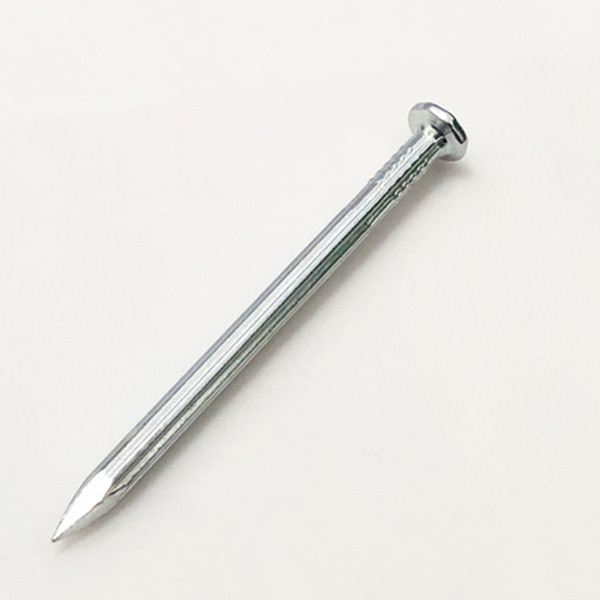

Fluted galvanized steel concrete nail close-up — Fluted steel concrete nail / Product detail

Technical data

Steel concrete nail reference specification

Confirm the final head, shank, finish, dimensions and packing against your application and destination market.

General product parameters
Product	Steel Concrete Nail
Material	45# / 55# Carbon Steel
Shank	Straight-line grooved (fluted), twisted, big twisted or smooth
Head	Flat, flat round (oval), T, P, K, V, D, O, U, checkered, countersunk or headless
Shank diameter	1.5-5.5 mm / BWG 6-16
Length	12.7-152.4 mm / 5/8-6 in
Surface treatment	White, yellow or blue galvanized; black treatment; polished steel; Ruspert; stainless steel
Application	Concrete, masonry, brick and general construction fixing
Packing	25 kg bag/carton, color box, small bag or OEM export packing
MOQ	Confirm by size, finish and packing

Length and diameter

Common size matrix

Reference values from the supplied product specification.

Length (inch)	Length (mm)	Diameter (BWG)
5/8	12.70	16 / 15 / 14
3/4	19.00	16 / 15 / 14
1	25.40	16 / 15 / 14
1-1/4	31.70	16 / 15 / 14
1-1/2	38.00	15 / 14 / 13
1-3/4	44.40	14 / 13
2	50.80	14 / 13 / 12 / 11 / 10
2-1/2	63.50	13 / 12 / 11 / 10
3	76.20	12 / 11 / 10 / 9 / 8
3-1/2	88.90	11 / 10 / 9 / 8
4	101.60	10 / 9 / 8
4-1/2	114.30	9 / 8 / 7
5	127.00	8 / 7 / 6
6	152.40	7 / 6 / 5

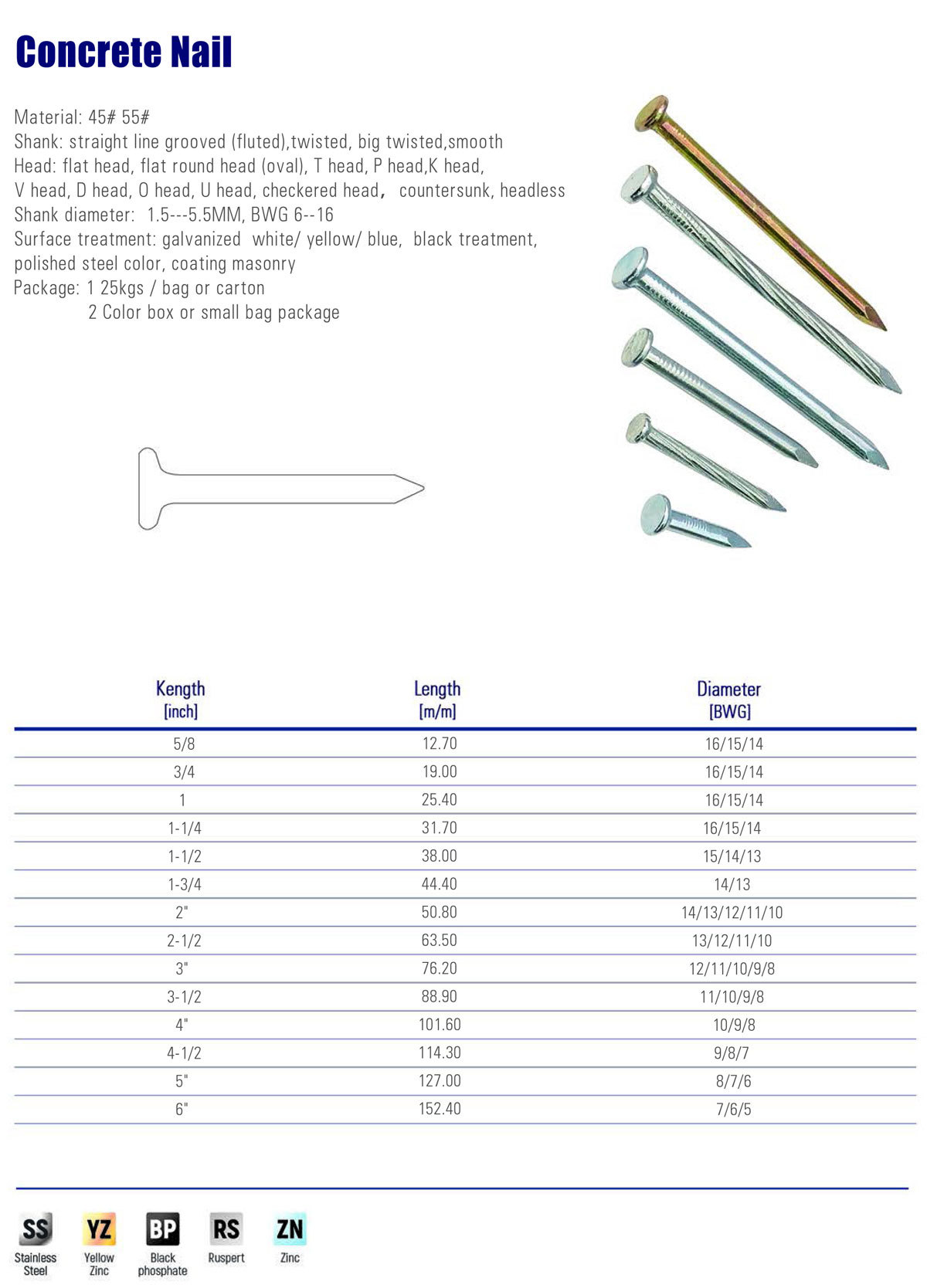

Concrete nail material, shank, head, finish and size specification chart — Concrete nail product and size reference sheet

Factory strength

Independent workshops. Heavy-duty material flow.

Wire drawing, nail making and packaging are coordinated in one manufacturing flow.

Independent workshop

Wire Drawing

Steel rod is drawn to controlled diameters for stable nail forming.

Independent workshop

Nail Making

Dedicated forming lines support consistent geometry and batch production.

Independent workshop

Packaging

Separate packing supports bags, cartons, color boxes and private labels.

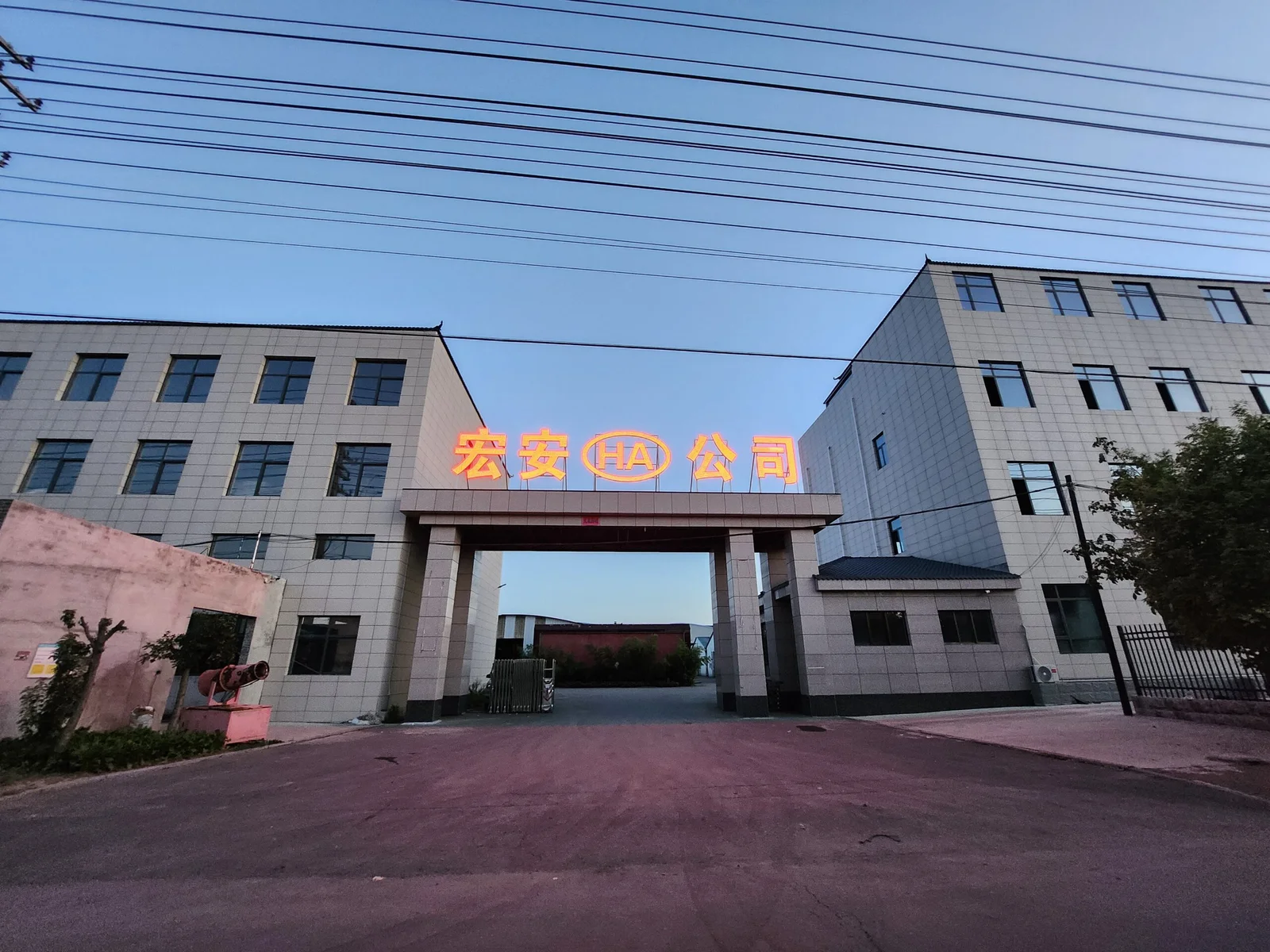

Far Glory industrial production facility — Coordinated production and warehouse layout

Heavy material capability

Built for raw wire coils exceeding three tonnes per batch

Cranes and forklifts work together across an efficient warehouse layout to handle ultra-heavy bare wire coils beyond conventional stillage rack limits.

Handling: Cranes + Forklifts
Material: Ultra-heavy bare wire coils
Storage: High-efficiency layout

Request a quotation

Send your steel nail size and packing list.

Include length, BWG or diameter, head, shank, finish, packing, quantity and destination.
