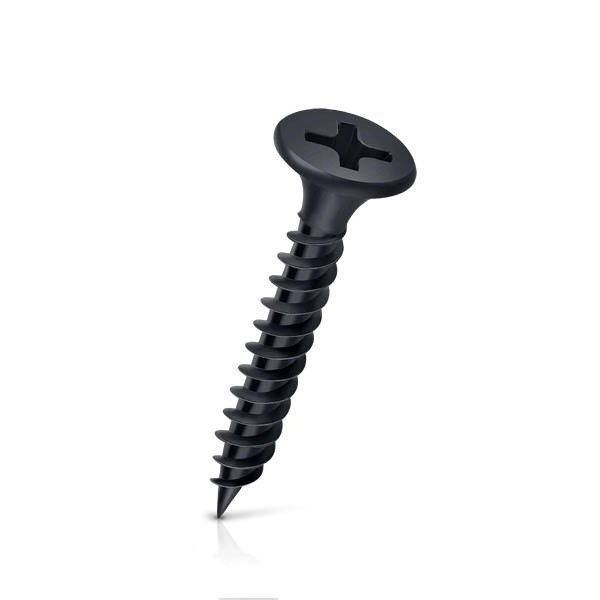

Single screw detail
Black phosphate drywall screw reference view
Drywall Screws - Fine Thread
Phillips bugle head screws for plasterboard, drywall and ceiling track systems.
- Item
- Drywall Screws
- Thread diameter
- 3.5 / 3.9 / 4.2 / 4.8 mm
- Driver bit
- PH2
- Head / recess
- Bugle Head / Phillips
- Thread
- Fine Thread / Coarse Thread
- Material
- 1022A Carbon Steel
- Finish
- Black or gray phosphate, white or yellow galvanized, nickel, Dacromet, Ruspert
Category: Product Center
Product description
Positive drive. Clean seating. Fast installation.
Fine thread drywall screws are used to secure plasterboard to drywall and ceiling track systems with metal thickness up to 0.6 mm. The geometry is intended to support reliable penetration and controlled seating at the board surface.
- PH2 drivePhillips No. 2 recess for positive tool engagement.
- Bugle headHelps reduce the likelihood of damaging the board surface.
- 25° sharp pointDesigned for easier initial penetration.
- 60° twin threadSupports pull-out performance and insertion speed.
Technical data
Complete reference specification
This reference configuration follows common B2B inquiry fields. Confirm the final specification against your target market and application.
| Item | Drywall Screws |
|---|---|
| Thread diameter | 3.5 / 3.9 / 4.2 / 4.8 mm |
| Driver bit size | PH2 |
| Recess type | Phillips |
| Head type | Bugle Head |
| Thread type | Fine Thread / Coarse Thread |
| Point type | 25° Sharp Point |
| Material | 1022A Carbon Steel |
| Pack type | Box / Bag / OEM Export Packing |
| Reference pack quantity | 1,000 pcs / box or 25 kg / bag |
| Corrosion rating | 1 - Clean, dry and low-humidity environments |
| Reference MOQ | 3,000 kg; confirm with quotation |
| Included item option | PH2 S2 bit, quantity 1 |

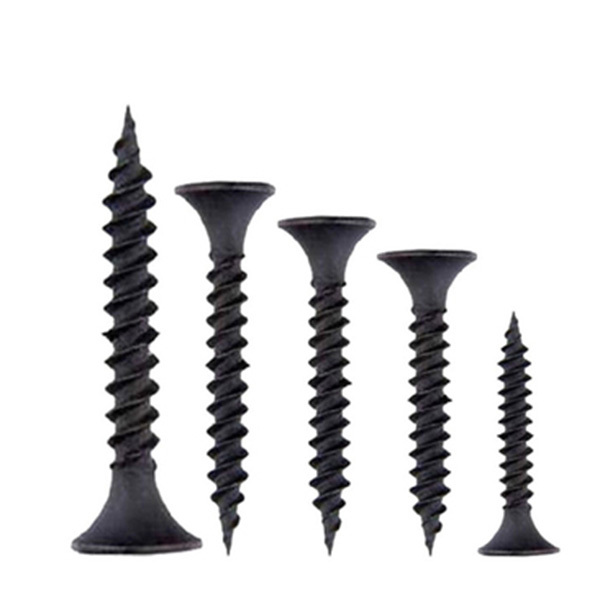

Diameter × length
Common size matrix
Dimensions in millimeters. Custom combinations can be reviewed against order quantity.
| Thread diameter | Head dia. max | Recess | Pitch | Common lengths |
|---|---|---|---|---|
| M3.5 | 8.0-8.4 | PH2 | 2.82 | 19, 25, 28, 32, 35, 38, 41 |
| M3.9 | 8.0-8.4 | PH2 | 2.82 | 25, 32, 35, 38, 41, 45, 50 |
| M4.2 | 8.0-8.4 | PH2 | 3.18 | 32, 38, 50, 63, 75, 80, 90 |
| M4.8 | 8.8-9.2 | PH2 | 3.18 | Confirm required length with inquiry |
Factory strength
Independent workshops. Heavy-duty material flow.
Far Glory connects wire preparation, fastener production and export packing in one coordinated manufacturing flow.
Independent workshop
Nail Making
Dedicated forming lines support consistent geometry, stable production and direct order coordination.
Independent workshop
Packaging
Finished goods move into a separate packing area for box, bag, carton and private-label preparation.
Heavy material capability
Built for raw wire coils exceeding three tonnes per batch
For ultra-heavy bare wire coils above three tonnes per batch, cranes and forklifts work together across an efficient spatial warehouse layout. This coordinated handling route supports loads far beyond the bearing limit of conventional standard stillage racks.
- Handling
- Cranes + Forklifts
- Material
- Ultra-heavy bare wire coils
- Storage
- High-efficiency spatial layout
Packing & OEM
Pack for the channel you sell through
Confirm unit quantity, inner box, outer carton, bag weight, pallet plan and private-label artwork before production.
- BoxRetail and distributor packs
- BagWeight-based bulk packing
- CartonExport-ready outer protection
- OEMLabels and artwork by request
